FROM START TO FINISH

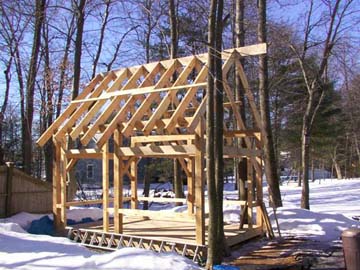

Pine Roof Deck (1" Pine Boards), Strapped Application

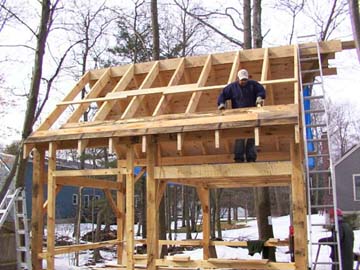

12' x 16' Timber Framed Garden Shed

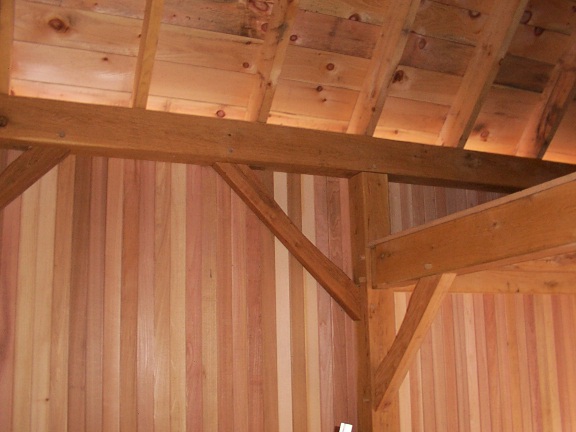

  1. Traditional Mortise and Tenon joinery with pegged joints.

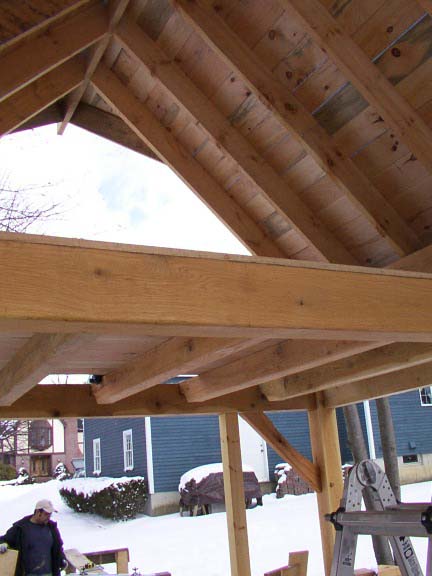

  2. Post and Beam Construction.
  3. Appropriate Ramp included
    (pressure treated) to double doors.

Frame - One and a half (1 1/2) stories

  1. 12' x 16' Oak Frame
  2. 10' Exterior Walls
  3. 8' Tall Loft
  4. Front Gable End Half Loft for Storage (oak, 6" width & 1" thickness floor boards)
  5. Approximately 16' Exterior Shed Height to Roof Peak
  6. 12 Pitch Roof

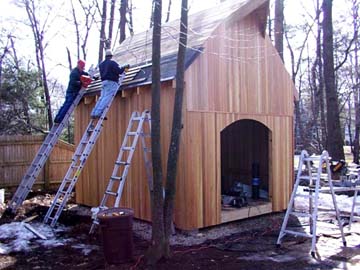

Roof

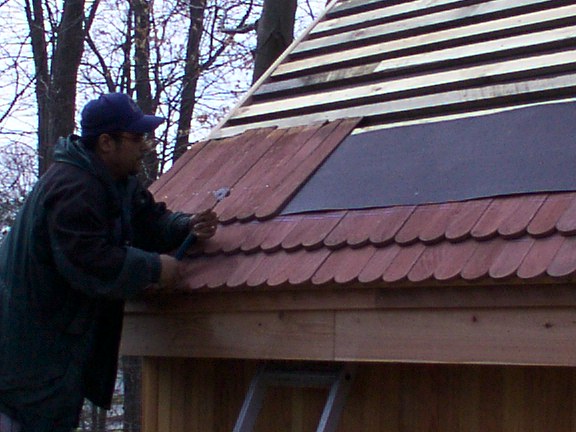

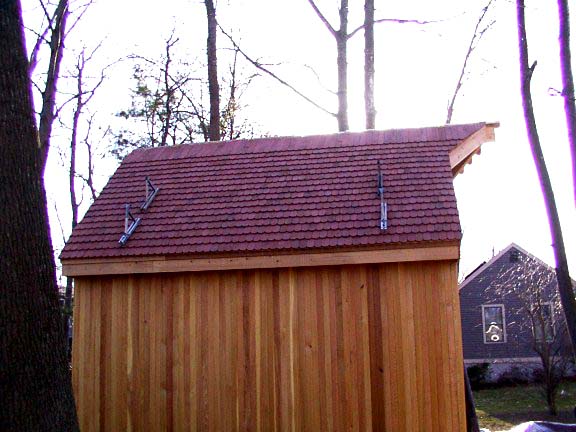

  1. Traditional Curved Red Cedar (round)
    Shakes (approx. 3 1/2" width, approx. 16" length and approx. 16" coverage, approx.3/4" thick)

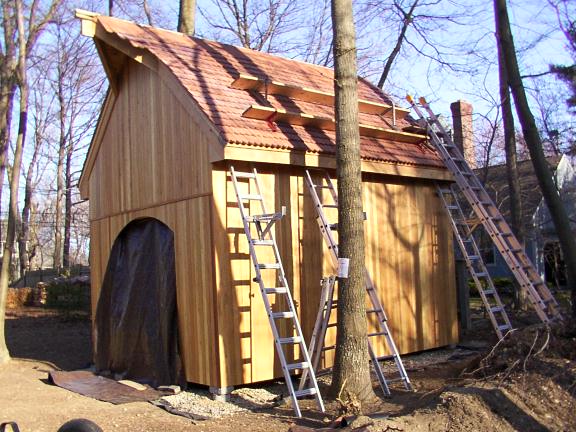

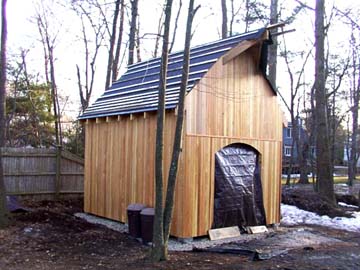

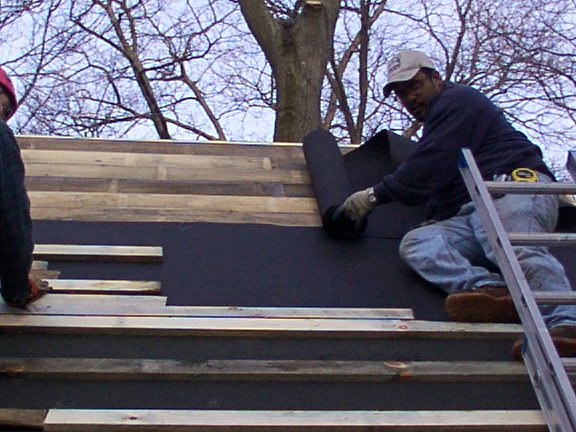

  2. Pine Roof Deck (1" Pine Boards), Strapped Application

  3. Hand Application with stainless steel nails

  4. Roof Ridge Modification with approx. 3' lift post and eyelet.

Flooring

  1. Rough Sawn Oak Floor Boards (6" width and 1" thickness).

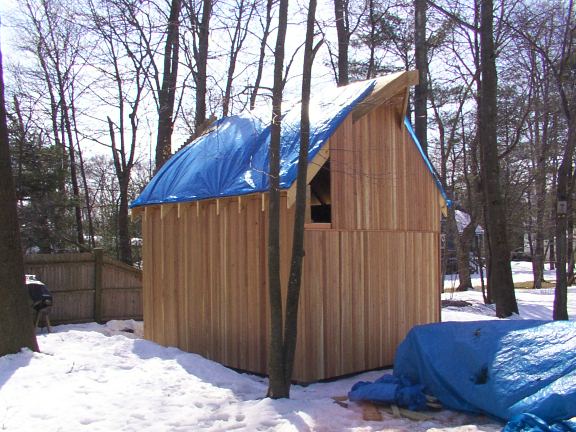

Siding

  1. T & G Cedar (Red Cedar) siding (vertical) planed (approx. 3" - 4" width and approx. 3/4" thickness).

  2. Mechanical application with stainless steel nails.

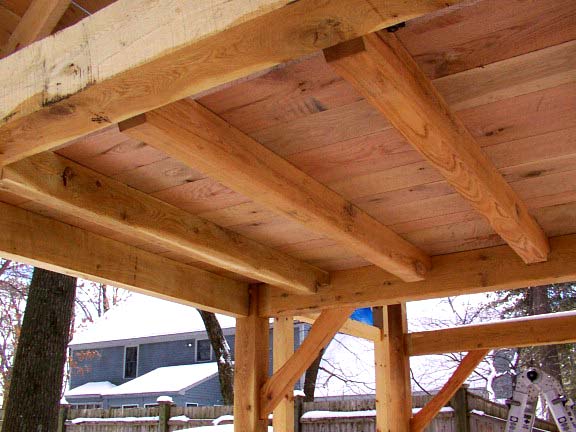

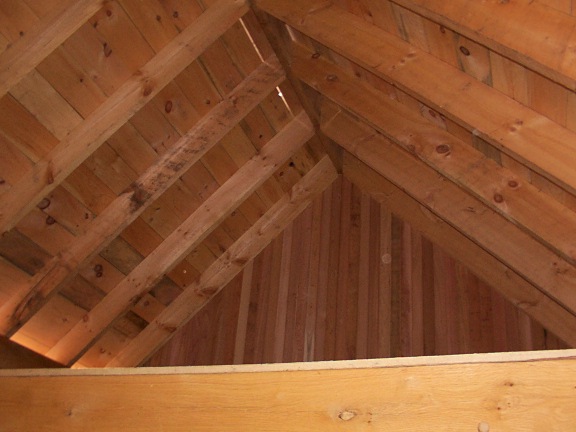

Oak Flooring installed in Loft

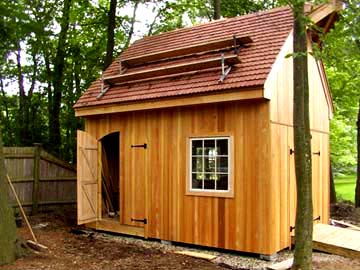

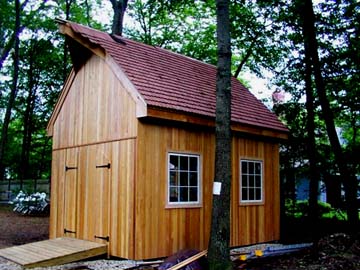

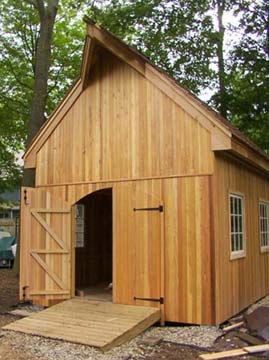

Finishing the frame with doors and windows.



 Doors

Hardware (hinges & door fasteners)

6 foot Double Door with round top Dutch style (7' height)

3 foot x 4 foot Barn Loft double Door with round top Dutch style

5 foot Double Door with round top Dutch style (7' height)

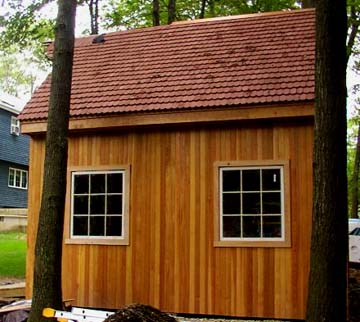

 Windows

Three (3) 9 pane windows with Tilt (hinged, approx. 4' x 3')

One (1) 6' wide transom window or alternative

Block and Tackle has been added to the peak of the shed




CLICK HERE FOR PICTURES OF THE FINISHED PROJECT
